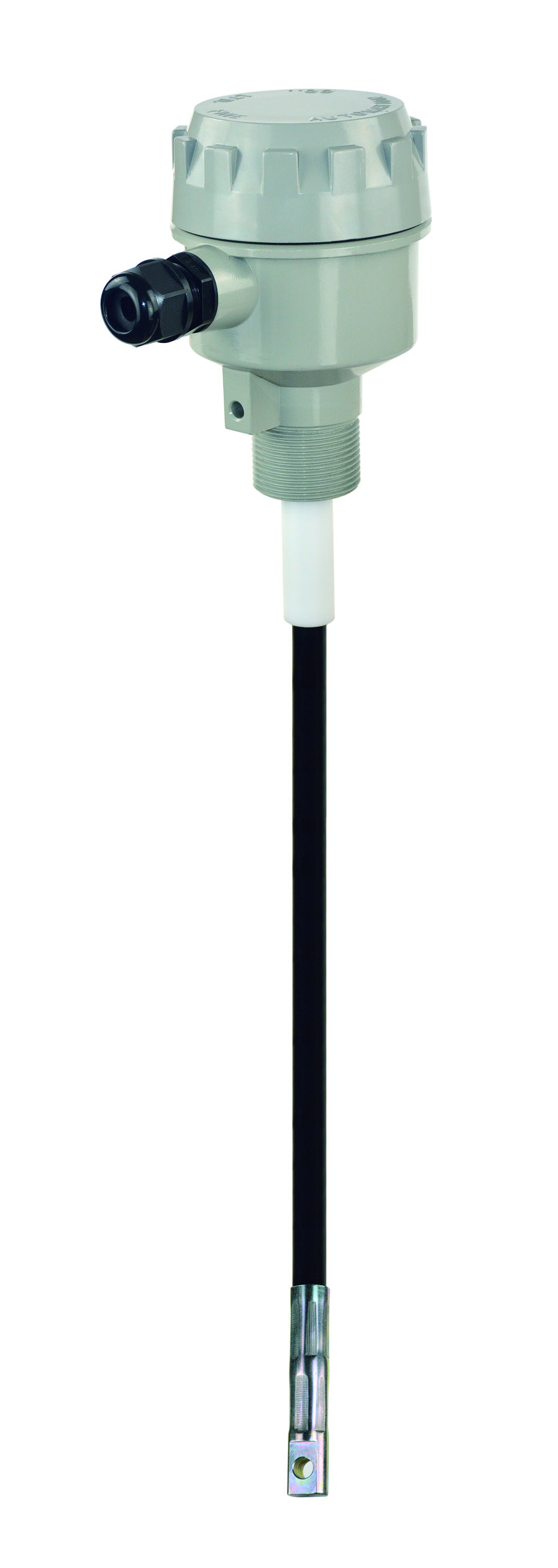

Finetek, EST Series- The World’s First 2-in-1 Level + Temperature Cable Grain & Bulk Storage Instant Monitoring

Finetek y Garma Electrónica presentes the world´s first 2-in -1 level and temperature transmiter.

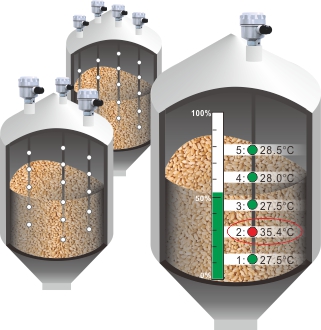

When the grain has suffered with deterioration, corrosion or pest and disease damage, the temperature inside the silo will be getting increased obviously. If the precise temperature information of the grain can be monitored, an aeration / fan conditioning system can be operated accordingly and more efficiently.

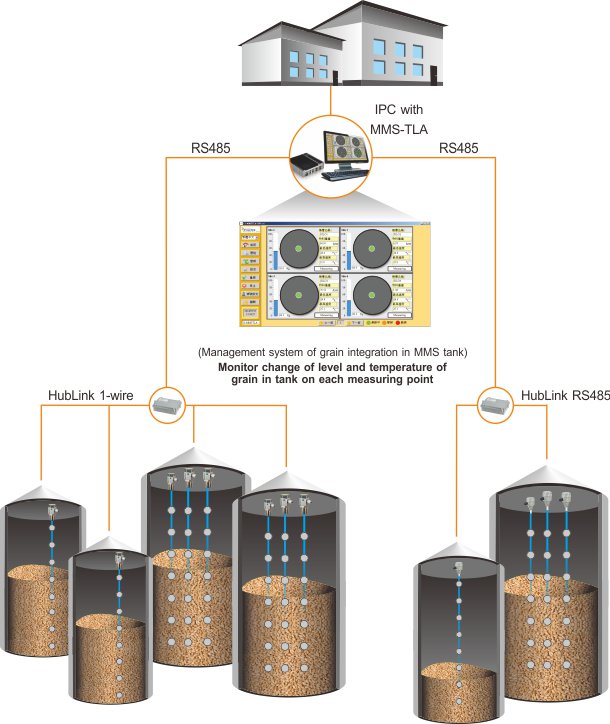

FineTek have developed the world’s first 2 in 1 Level + Temperature cable to provide instant monitoring for grain management. It employs an RS485 communication interface to transmit information to a central control room or SCADA / PLC / HMI via wired or wirelessly.

The EST is matched with MMS-TLA Integrated monitoring software, so that the user can easily monitor dual information, both the temperature and grain level in the silo through any remote PC, thereby performing grain storage management with the

Features Monitoring the condition of grain, food or feed mill instantly. Strong structure design for the cable to resist pulling force Max. 4,000 kgf. Protect the vibration and strike from material incoming to extend the durability of EST. Widely used for many kinds of grain. Such as corn, soybean, sorghum, rice and wheat…etc. Or even coal or cement. Reliable level indication and pump dry run protection Temp. sensor interval and quantity can be customized. Equip with standard open RS-485 communication interface. Easy to do the remote control in office or control room with MMS-TLA system.

Specifications Power supply: 9~30 Vdc. Max. measuring range: 30M. Tensile load: 4000 Kgf. IP rating: IP67. Max.30 temp. sensing points in one cable sensor. Applicable for feed/ flour/ rice/ livestock.

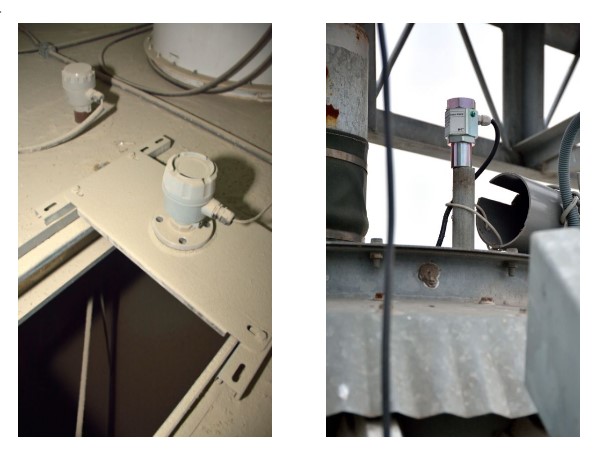

Case Study

No more waiting to be able to get the world’s first 2 in 1 level + temperature cable Grain & Bulk Storage Instant Monitoring
