Key Features: AQUA XL ATMI Wastewater Float Level Regulator

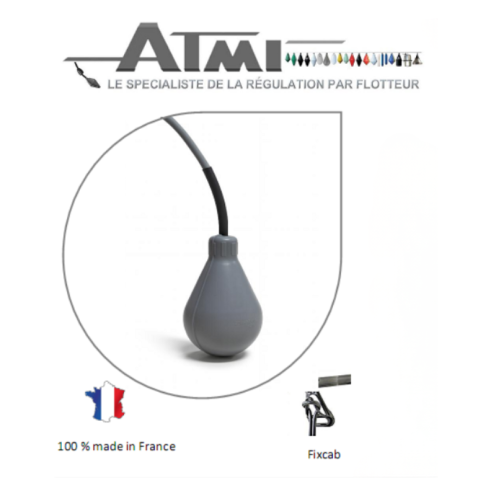

The AQUA XL from ATMI is a heavy-duty float level switch with built-in internal ballast (775 g), specially engineered to penetrate thick grease layers in **wastewater pumping stations**. It operates by tilting: as the liquid level rises or falls, the internal microswitch opens or closes an electrical circuit connected to the control panel. Features eco-friendly design (no mercury, no lead), highly resistant neoprene cable, full IP68 protection, and switching capacity up to 20 A. As official distributor at Garmasl, we offer this top-reliability level regulator, one of the most effective solutions on the market for heavily loaded wastewater environments.

Main Specifications: AQUA XL ATMI Float Level Switch

• Type: Tilt level regulator with internal ballast (weight 775 g).
• Allowed Density: 0.95 to 1.10 g/cm³ – perfect for wastewater with grease.
• Switching Angle: Approx. ±95° for accurate and reliable response.
• Cut-out Power: 20 A (resistive) / 8 A (inductive) – handles multiple pumps.
• Materials: Copolymer polypropylene body, neoprene or special PVC cable, full IP68.
• Temperature & Pressure: Up to +70 °C and 2 bar max – excellent chemical resistance.

Applications and Benefits: AQUA XL ATMI Float Level Switch for Wastewater

Wastewater Pumping Stations & Tanks: Easily breaks through thick surface grease layers, ensuring reliable pump start/stop – one of the toughest regulators on the market.

Multi-pump Control & Alarms: Ideal for filling/emptying, dry-run protection, high/low level alarms and simultaneous control of several pumps, minimizing failures and maintenance costs.

Slightly Aggressive & Sludge Liquids: Resists oils, mud and particle-laden fluids, delivering long service life and maintenance-free operation in industrial and municipal settings.
