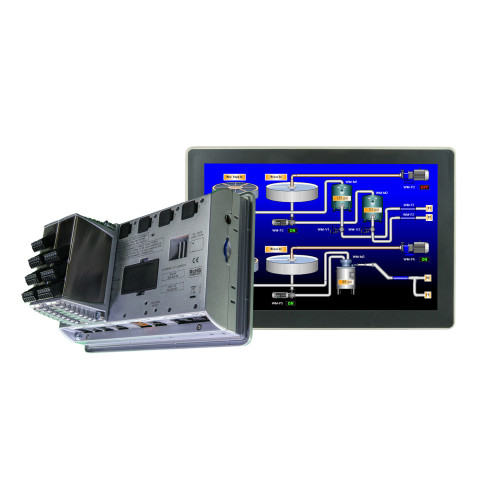

Graphite 7" Modular HMI Panel | Red Lion

Key Features: Graphite® 7" Modular Touchscreen HMI G07C0000

Rugged Construction: Designed with an aluminum casing to withstand extreme temperature and vibration conditions, featuring a sunlight-visible screen for outdoor applications, ideal for demanding industrial environments.

Expansion Options: Equipped with plug-and-play modules enabling advanced customization, including PID controllers, digital and analog I/O, and universal input modules. Additionally, Crimson® software allows advanced programming with IEC 61131 standards.

Extensive Connectivity: Includes a 10/100 Base-TX Ethernet port, fully isolated RS-232 and RS-422/485 serial ports, and two high-retention USB ports, providing additional connection options in certain models.

Advanced Communication Capabilities: Supports over 300 protocols, facilitating integration with devices from various providers, such as PLCs, motion controllers, and other industrial systems.

Remote Monitoring and Control: Thanks to the integrated web server, it enables monitoring and control from any networked device, with email or SMS alerts for a rapid response to events.

Robust Data Logging: Incorporates a data logger that exports files in CSV format, with options to email or sync with FTP or SQL servers, ensuring efficient information management.

Crimson® Software: Provides an intuitive drag-and-drop configuration interface, at no additional cost, allowing advanced programming through the Crimson Control module.

Main Specifications: Graphite® 7" Modular HMI G07C0000

• 7 inch WVGA Color Widescreen touchscreen HMI (800 x 480)
• Up to 20 simultaneous protocol conversions
• One 10/100 Base-TX Ethernet port
• Three fully isolated serial communication ports (two RS-232 and one RS-422/485)
• RS-232 to Ethernet (Serial to Ethernet) support
• One USB Type B port
• Two high-retention USB Host ports
• 5 module slots for easy I/O capability expansion with plug-in modules
• Dimensions: 196 x 140 mm
• Compatible with OPC UA Client and historical access
• Integrated MQTT connectors accelerate IIoT projects with point-and-click simplicity

Applications and Benefits: Graphite® 7" Modular HMI G07C0000

Process Monitoring and Optimization: Allows real-time monitoring, enhancing operational efficiency and providing optimized control in challenging industrial environments.

Quick IIoT Project Integration: Seamless connectivity with cloud platforms and industrial systems through OPC UA and MQTT, facilitating digital transformation.

Durable Construction: The aluminum casing ensures resistance and durability in outdoor and industrial environments, ideal for outdoor applications.

Time and Cost Savings: Easy configuration and fast implementation help reduce downtime and optimize operational resources, maximizing return on investment.

Modular Flexibility: The modular expansion capability allows adaptation to new requirements without complications, ensuring a long-term solution adaptable to industrial changes.
