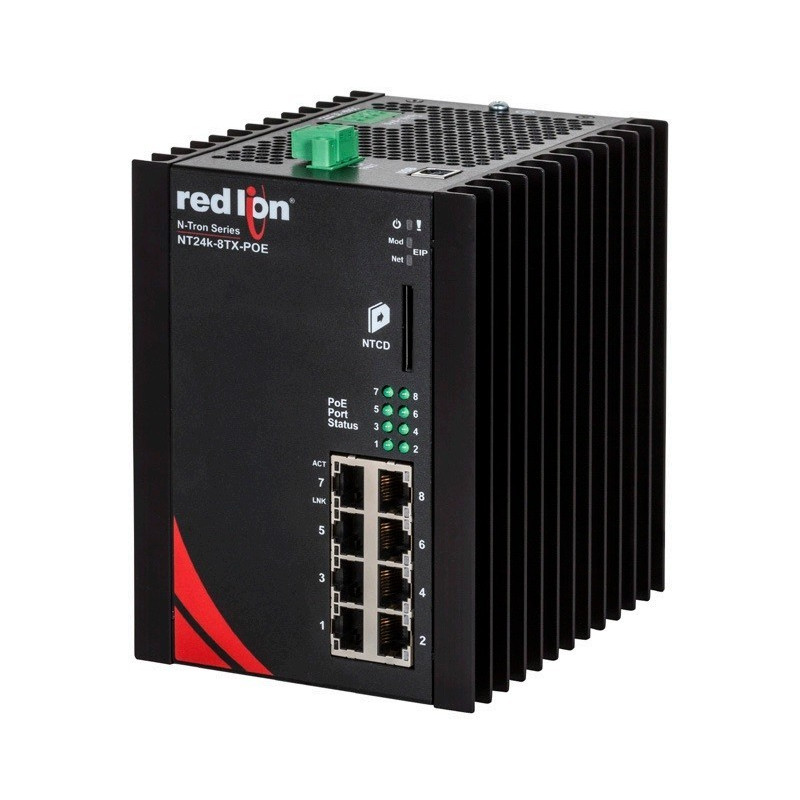

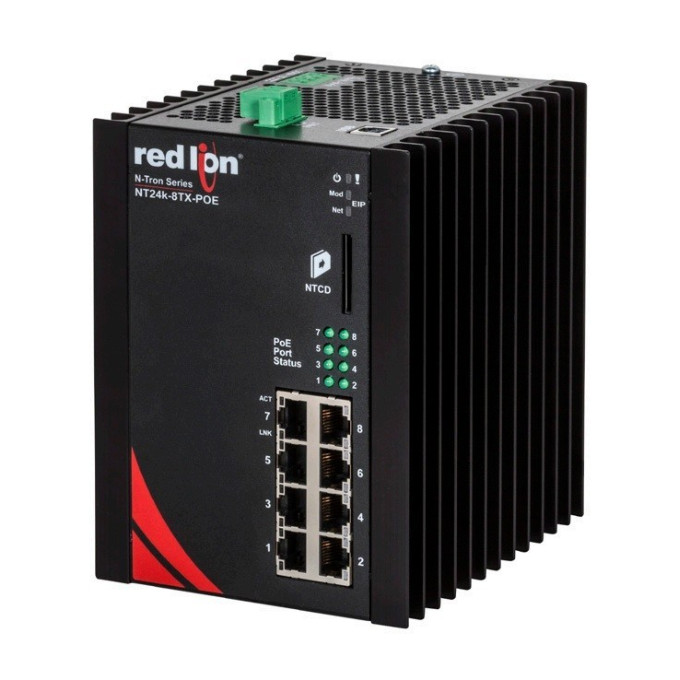

NT24k® All-Gigabit PoE+ Managed Switches

NT24k® Managed Ethernet Switches

NT24k®  Managed  Ethernet Switches



Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

NT24k®  Managed  Ethernet Switches

Red Lion's N-Tron® series NT24k® Gigabit managed industrial Ethernet switches are available in rackmount or DIN-rail mountable configurations. The NT24k platform offers a wide array of port configurations, media types and Power over Ethernet Plus (PoE+) models including 10/100/1000 copper, and Fast Ethernet and Gigabit fiber options. All NT24k switches are plug-and-play installable with IGMP auto-configuration, media/port auto-detection and simple ring configuration, making the NT24k platform one of the easiest to deploy managed switches in the industry. Housed in rugged hardened enclosures, the NT24k switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology.



Specifications

Connectivity:

The NT24k 10-to-14 port DIN-rail mountable switches feature Fast Ethernet, Gigabit or dual-mode fiber ports alongside eight Gigabit copper ports with optional IEEE 802.3af/at Power over Ethernet Plus (PoE+) support. Fiber models include support for SC, ST and LC fiber connector styles and support for multimode and singlemode communication.

Performance:

NT24k managed switches provide uncompromising performance in harsh environments including network features like N-Ring™, VLAN, Quality of Service (QoS), port mirroring, IGMP SNTP and SNMP. Additionally the NT24k offers IEEE 802.1x RADIUS with remote server authentication to ensure port security. These network management features provide best-in-class visibility, security and uptime performance.

Environmental:

The compact NT24k is housed in a hardened metal DIN-rail mountable enclosure providing reliable operation in extreme environments. Featuring a -40° to 80°C operating temperature range, high tolerance to shock and vibration, and UL/cUL Class I, Division 2 listing, these switches are built to last in the most demanding and hazardous environments.

Monitoring:

NT24k switches come with N-View™ monitoring technology which provides 47 different status points on switch and port conditions and displays that information on any networked computer.

Security:

Red Lion's NT24k switches provide a high level of security that utilizes IEEE 802.1x with RADIUS remote server authentication and SNMPv3 communication protocol.

Available Products



Reference Ports  10/100
/1000
100 Fiber Gig
Fiber
SFP Mounting Temperature
NT24k-8TX 8 8 - - - DIN-Rail -40˚ a 85˚C
NT24k-16TX 16 16 - - - DIN-Rail -40˚ a 85˚C
NT24k-10FX2 10 8 2 - - DIN-Rail -40˚ a 85˚C
NT24k-10GX2 10 8 - 2 - DIN-Rail -40˚ a 85˚C
NT24k-11FX3 11 8 3 - - DIN-Rail -40˚ a 85˚C
NT24k-11GX3 11 8 - 3 - DIN-Rail -40˚ a 85˚C
NT24k-12FX4 12 8 4 - - DIN-Rail -40˚ a 85˚C
NT24k-12GX4 12 8 - 4 - DIN-Rail -40˚ a 85˚C
NT24k-14FX6 14 8 6 - - DIN-Rail -40˚ a 85˚C
NT24k-14GX6 14 8 - 6 - DIN-Rail -40˚ a 85˚C
NT24k-12SFP-DM4 12 8 - - <4 DIN-Rail -40˚ a 80˚C
NT24k-DR16 16 <16 <16 <16 <16 DIN-Rail -40˚ a 75˚C
NT24k-DR24 24 <24 <24 <24 <24 DIN-Rail  -40˚ a 75˚C
NT24k 24 <24 <24 <24 <24 Rack

 -40˚ a 85˚C
