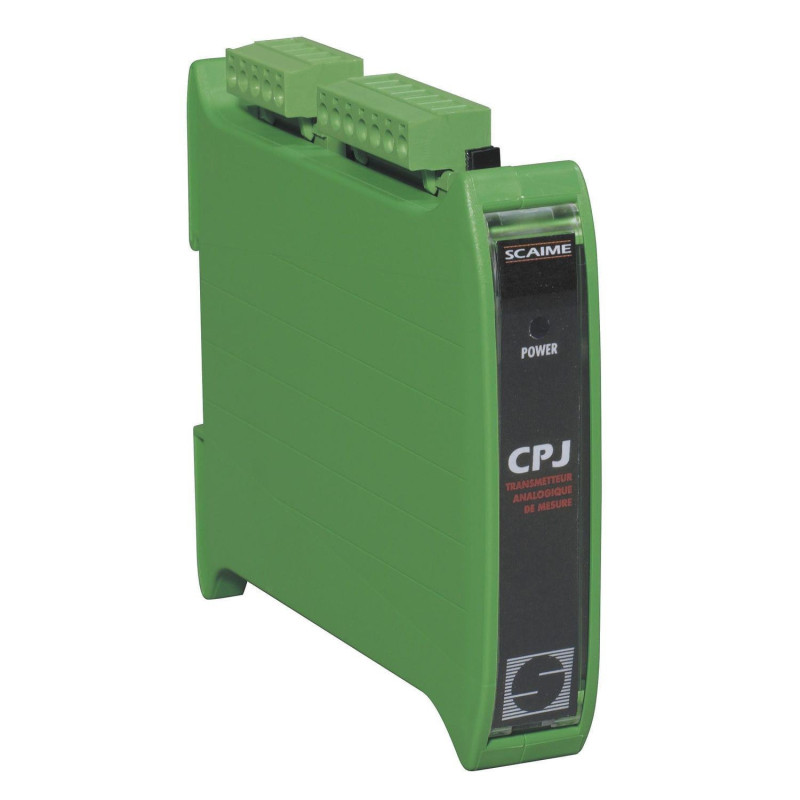

SCAIME CPJ / CPJ2S Load Cell Signal Conditioner
SCAIME | INDUSTRIAL WEIGHING SOLUTIONS
Signal conditioning for integrating load cells, force measurement and weighing systems into automated industrial processes.
The SCAIME CPJ and CPJ2S are analogue signal conditioners for load cells and strain gauge sensors. They convert the sensor signal into an industrial current or voltage output suitable for connection to a compatible PLC, data acquisition system or industrial controller.
The CPJ / CPJ2S family supports up to four load cells with 4- or 6-wire connections. This makes it suitable for weighing applications with multiple support points, including tanks, hoppers and platforms, provided that the electrical characteristics of the connected sensors are compatible with the selected configuration.
The CPJ2S additionally provides two relay switching thresholds. These can be used when the application requires alarm or switching signals alongside the analogue weight or force measurement.
Key Features
Up to 4 load cells
Connection of compatible 4- or 6-wire strain gauge sensors.
Analogue outputs
4-20 mA, 0-10 V and ±10 V, depending on configuration.
PLC integration
Transmission of weight or force measurements to compatible analogue inputs.
CPJ2S: two relays
Two switching thresholds for alarm and control functions.
Main Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | SCAIME |
| Models | CPJ / CPJ2S |
| Device type | Analogue signal conditioner for strain gauge sensors |
| Compatible sensors | Compatible load cells and strain gauge sensors |
| Number of load cells | Up to 4, subject to sensor electrical characteristics |
| Sensor connection | 4 or 6 wires |
| Analogue outputs | 4-20 mA, 0-10 V and ±10 V, depending on configuration |
| Calibration | Shunt calibration function |
| Switching thresholds | 2 relay outputs on the CPJ2S version |
| Mounting formats | DIN rail enclosure, IP65 enclosure or electronic board, depending on version and part number |
| Power supply and environmental conditions | Refer to the datasheet for the selected part number |
| Applications | Industrial weighing, force measurement and automation system integration |
Final specifications depend on the model, mounting format and selected part number. The IP65 protection rating applies only to the enclosure version specified with that rating.
What Is the Difference Between SCAIME CPJ and CPJ2S?
| Model | Main function | Typical application |
|---|---|---|
| CPJ | Analogue signal conditioning and measurement transmission. | Integration of weight or force measurements into a PLC or monitoring system. |
| CPJ2S | Analogue signal conditioning with two relay switching thresholds. | Weight or force measurement with additional alarm or switching signals. |
Industrial Applications and Benefits
Tank, Silo and Hopper Weighing
The CPJ / CPJ2S can condition signals from load cells installed beneath tanks, silos and hoppers and transmit the measurement to a control system. The resulting weight information can be used for process monitoring and automation.
Load Cell Integration with PLCs
When a PLC has compatible analogue inputs, the signal conditioner allows weight or force measurements to be incorporated through a standardised analogue signal, rather than connecting the low-level strain gauge signal directly to the PLC.
Force Measurement in Industrial Machinery
The CPJ / CPJ2S family can also be used to monitor loads and forces in industrial machines, subject to the characteristics of the sensor and the measurement requirements of the application.
Alarm and Threshold-Based Control
The CPJ2S version features two relay switching thresholds. These can be integrated into alarm or switching functions according to the control logic and safety requirements of the installation.
How to Connect Load Cells to an Industrial PLC
A strain gauge load cell produces a low-level electrical signal related to the applied load. The CPJ / CPJ2S conditions this signal so that it can be used by compatible industrial control equipment.
LOAD CELLS
↓
SCAIME CPJ / CPJ2S
Signal conditioning
↓
ANALOGUE OUTPUT
4-20 mA / 0-10 V / ±10 V, depending on configuration
↓
PLC / CONTROL SYSTEM
To select the appropriate configuration, the load cell sensitivity and impedance, number of connected sensors, power supply, measurement range, required output signal and installation conditions must be checked.
Why Choose Garma Electrónica for SCAIME Weighing Solutions?
Garma Electrónica supplies SCAIME products and provides technical advice on industrial weighing, force measurement and weighing process automation.
We can help you select the components for your application, including load cells, mounting accessories, junction boxes, signal conditioners, weighing transmitters and PLC integration, according to your technical requirements.
Request a Quote for SCAIME CPJ / CPJ2S
Tell us which model you need, the mounting format, the number and part numbers of your load cells, the required output signal and your application.
