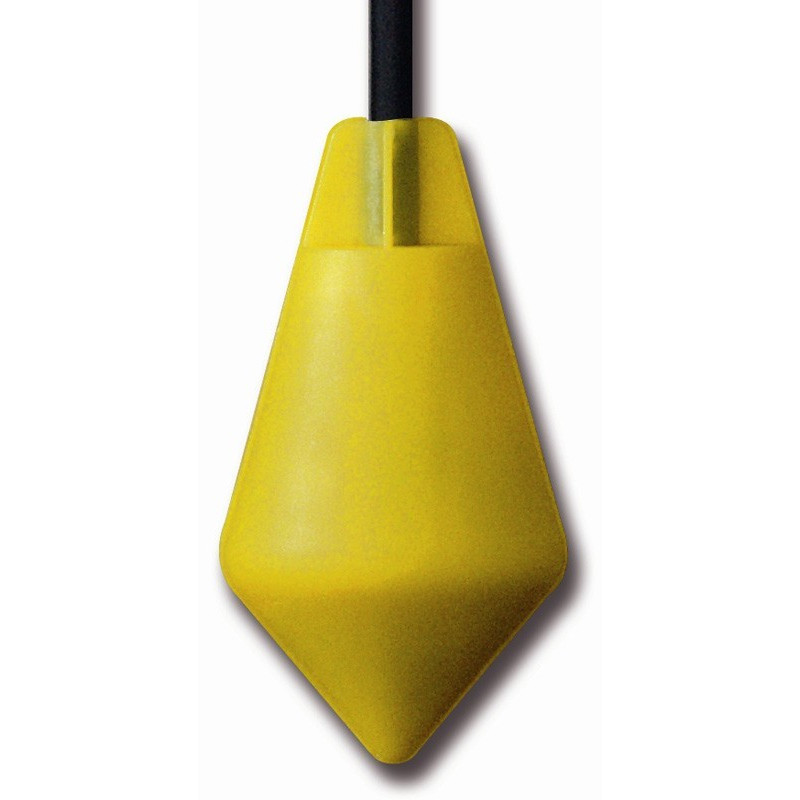

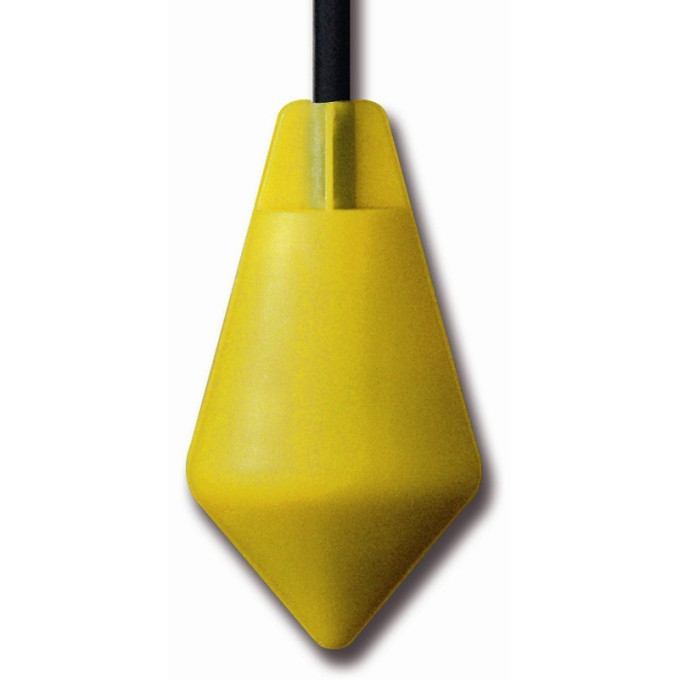

BIP LEVEL SWITCH STOP +/-110º

The BIP STOP is a small float switch designed for the automatic control of small pumps. It can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps. Thanks to its wide switching angle of 110º, the BIP STOP protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.

Advantages

• 110º switching angle that protects the pump's engine from jerking
• No maintenance needed, thanks to its biconical shape that avoids any clogging
• Easy to install, easy to use
• Ecological float switch (no mercury, no lead)

Applications

• Clear, clean liquids, rain water, certain types of wastewater
• Slightly aggressive liquids (oil, mud, paint, etc.) and more aggressive liquids if equipped with a HR HY cable
• Emptying / Filling function
• Overflow or dry-running protection
• High / low level alarm

Technical characteristics

Operation mode              Omnidirectional

Switching angle                +/- 110º
Maximum pressure          3,5 bars
Allowed fluid density        0,70 to 1,15
Cut-out power                   20 (8) A (20A resistive – 8A inductive)
Cable type                        Neoprene or HR HY (High Resistance)
