Vibrating Fork Level Switch SCX2 | FineTek

Key Features: SCX2 Vibrating Fork Level Switch | FineTek

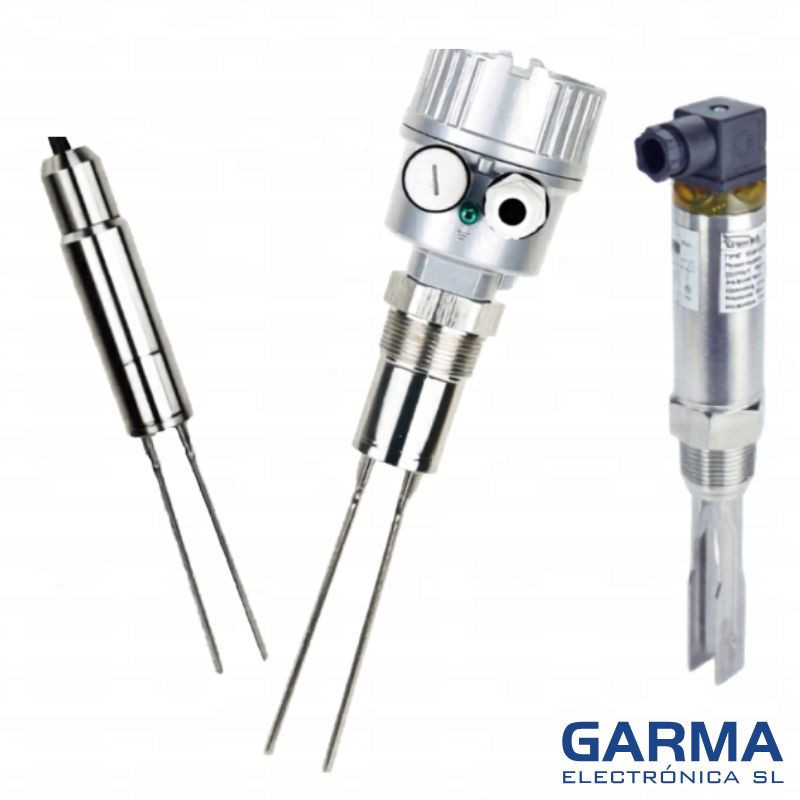

The FineTek SCX2 is a high-performance vibrating fork point level switch designed for accurate and reliable level detection in industrial environments. It is suitable for high and low level control in tanks, silos, hoppers and pipelines containing liquids, powders or bulk solids.

Advanced piezoelectric technology: the vibrating fork operates at a fixed frequency and detects material presence through vibration damping.

Multi-purpose application: suitable for liquids, powders, fine solids, granules and low-density materials.

Industrial output options: available with SPDT relay or SSR MOSFET output for seamless integration with PLC and control systems.

Wide power supply range: 20–250 Vac/Vdc, 50/60 Hz, ideal for new installations and retrofit projects.

High reliability: no need for frequent calibration, adjustable sensitivity and selectable Fail-Safe High/Low modes.

Robust construction: designed for demanding industries such as food processing, chemical, cement, plastics and water treatment.

Main Specifications: SCX2 Vibrating Fork Level Switch | FineTek

• Measuring principle: vibrating fork with piezoelectric feedback electronics.
• Function: point level detection (high or low level).
• Media compatibility: liquids, bulk solids, powders, granules and low-density materials.
• Power supply: 20–250 Vac/Vdc, 50/60 Hz.
• Output: SPDT relay or SSR MOSFET (depending on model).
• Fail-Safe modes: selectable High or Low level safety function.
• Sensitivity adjustment for different material densities.
• Probe materials: stainless steel SUS 304 / 316 / 316L (depending on configuration).
• Typical installations: tanks, silos, hoppers, pipelines, storage vessels and process equipment.

Applications and Benefits: SCX2 Vibrating Fork Level Switch | FineTek

The FineTek SCX2 vibrating fork level switch is engineered to prevent overflow, protect pumps, control silo discharge and ensure continuous material availability in automated production processes.

• Food & beverage: flour, sugar, salt, coffee, powders, liquids and viscous products.
• Chemical & pharmaceutical: solvents, aggressive liquids, powders and process materials.
• Cement, aggregates & plastics: level detection in silos, hoppers and conveying systems.
• Water & wastewater treatment: level control in tanks, sludge, chemicals and industrial fluids.

As a FineTek distributor in Spain, Garma provides expert technical support to select the optimal SCX2 configuration based on process conditions such as material density, temperature, pressure, mounting type and electrical interface.

Why Choose Garma for FineTek Level Solutions?

• Expert technical guidance for correct SCX2 selection.
• Support for replacing obsolete level sensors and cross-brand equivalences.
• Comprehensive solutions for level detection in liquids, solids and powders.
• Integration with PLC systems, alarms and industrial control panels.
