Digital Current Monitoring Relay

Digital Current Monitoring Relay| RISH I

RISH I

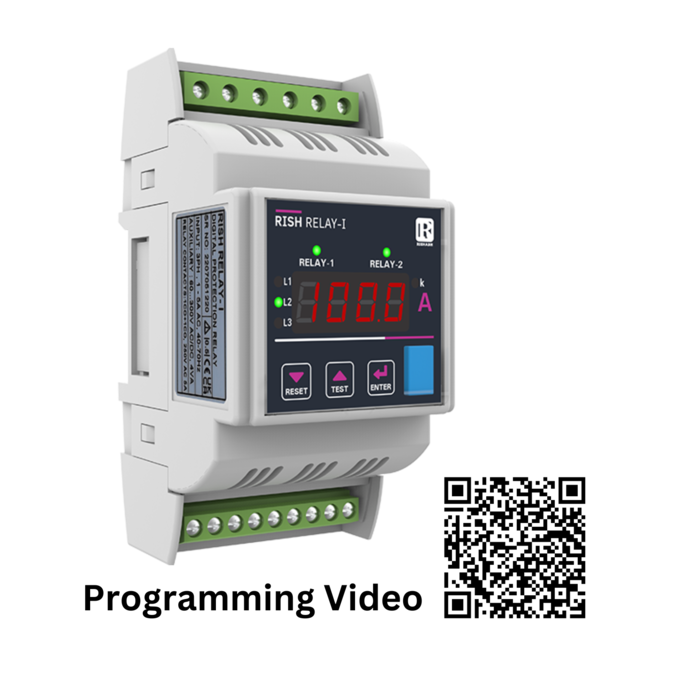

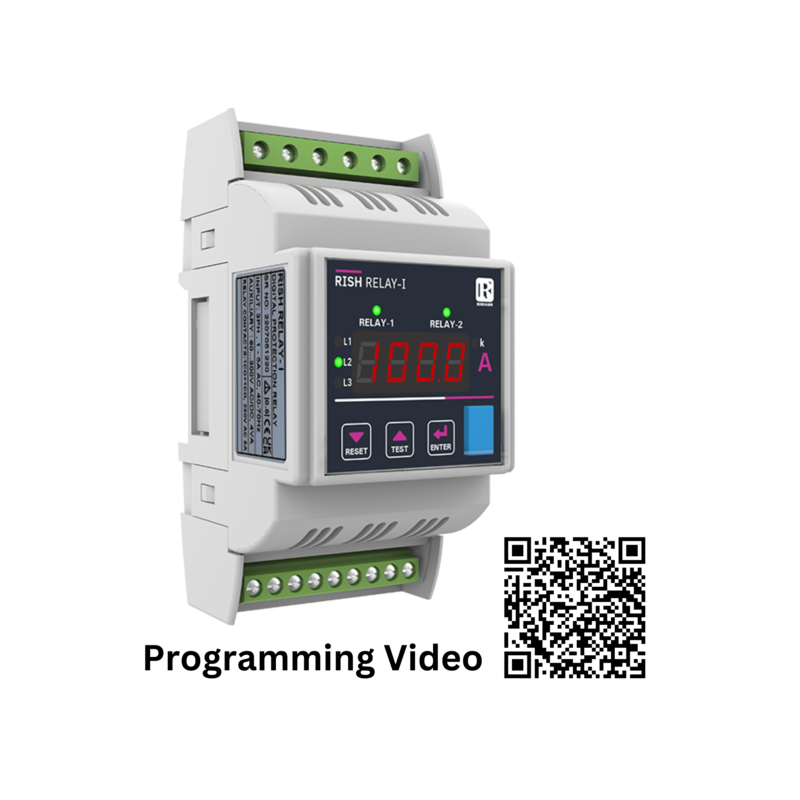

the Digital Current Monitoring Relay RISH I by Rishabh Instruments provides precise current monitoring and control for industrial applications, ensuring reliable performance in critical settings. This relay offers high-precision current measurement, adjustable trip settings, and LED indicators for easy monitoring. With features like overload and underload protection, along with a compact, durable design, the Model 267 enhances system safety and operational efficiency. Ideal for applications requiring dependable relay protection, it integrates smoothly into various setups.



Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

Key Features of Digital Current Monitoring Relay RISH I

Digital current monitoring: Provides precise current monitoring ideal for demanding industrial environments.

Adjustable trip settings: Allows customizable trip levels for overload and underload protection, optimizing system safety.

Integrated LED indicators: Facilitates visual monitoring of relay status, enhancing operational efficiency.

Advanced protection: Offers protection against overloads and underloads, ensuring system stability and reliability.

Compact and durable design: Its robust construction makes it suitable for a wide range of industrial applications.

Versatile compatibility: Easily integrates into diverse setups, offering flexibility in installation.

Main Specifications of Digital Current Monitoring Relay RISH I

  • Current monitoring range: 0-10 A
  • Supply voltage: 230 V AC
  • LED indicators for operational and fault status
  • Overload and underload protection
  • Output relay with 5 A load capacity at 230 V AC
  • Compact panel-mountable dimensions

Applications and Benefits of Digital Current Monitoring Relay RISH I

Industrial equipment protection: Provides continuous monitoring to prevent faults, protecting critical equipment. ( Machinery-detecting broken drive belt on machinery, )

Control system optimization: Enables early detection of current issues, maximizing system efficiency.

Versatile installation: Compatible with various industrial configurations, facilitating implementation.

Reduced downtime: LED indicators and protection features help minimize operational interruptions.

 RISH Relay I is used to protect against Over Current, Under Current, Current Loss, Current Un balance.

PRODUCT FEATURES

  • Over current protection with IDMT curve
  • Under current protection
  • Current loss protection
  • Current unbalance protection
  • 4 Digits ultra bright Seven segment LED Display
  • Trip relay cum DPM with Class 0.5





applications

  • Over current
  • Under current
  • Load detection
  • Monitoring of electric heating system
  • General application- for any electrical load, monitoring for under load and over load conditions
  • Motors- monitoring for conditions such as overload, locked rotor and short circuit
  • Genset- to ensure load current is within generator capacity
Rish Intensidad Rish_Relay_OPERATING_MANUAL.pdf
