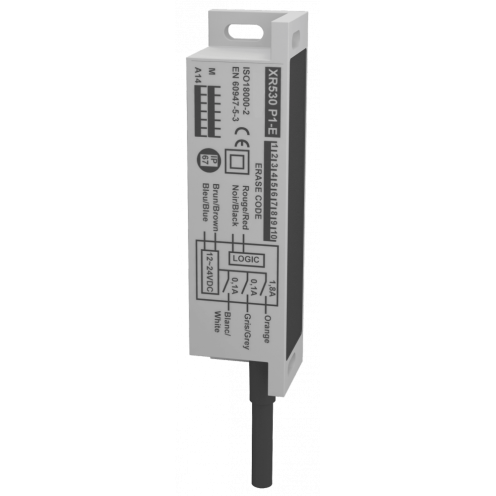

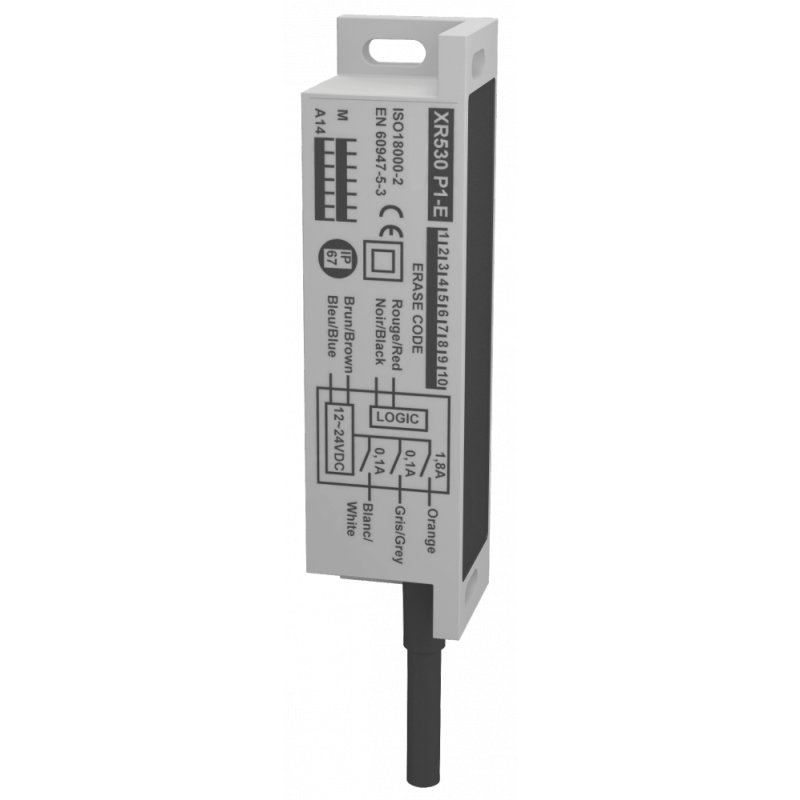

Safety Switch stand Alone with RFID coding XR 530P/ XR 550P

XR 530P / XR 550P - Badge access control reader with RFID coding

Card access control with RFID encoding XR 530P
RFID sensor with 16 million codes
Lock control and two alarm levels
Programmable code through auto-learning (no software or PC)
Warranty: 3 years

Technical description

• Switching cycle: B10 = 1 million.
• Max activation distance: XR 530P up to 25 mm - XR 550P up to 50 mm
• Contact/diagnostics: 1 x 1.8A PNP timed 5s/2 x 200m APNP.
• Alarm 1 (120s failure to close) and 2 (30s breaking open).
• Duration of alarms editable upon request (XR530P, P1 ... P10).
• Detection encoding: 16 million.
• Indicator: LED indicates code recognition.
• Optional erasing card to reassign new codes.
• Encoding of geographic location: (base + E1 to E10).
• Reset : automatic.
• Attachment: 4 tamper-proof M4 screws (in base option: BH4).
• Mounting position: 2 (double wall brackets).
• Material: PA6.
• Electrical Connection: 3, 6, 12m (UL2464 PVC).
• Sealing: IP67.
• Temperature: -25 °C to +70 °C.
• Marking: pad printing + serial number for traceability.
• Option: badge nail, screw, plate screw, key chain, card, etc.
• Application example: access to luxury showcases with lock control.
