Differential Pressure Indicator Transmitter DE38 | Fischer

Key Features: Differential Pressure Indicator Transmitter Fischer DE38

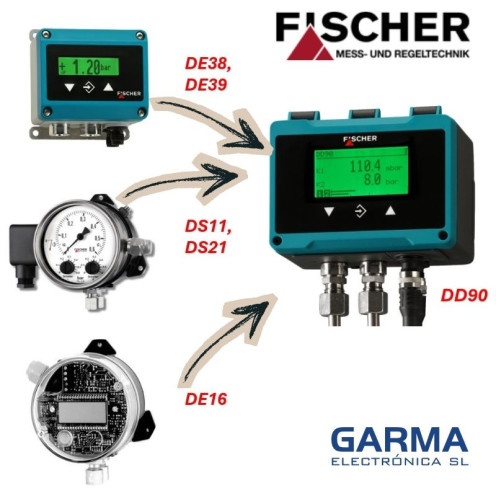

The Fischer DE38 is a differential pressure transmitter and indicator with integrated digital display, engineered for accurate and rugged measurements in neutral gaseous and liquid media. It covers measuring ranges from 0…60 mbar to 0…25 bar (uni- or bidirectional), configurable analog output (4-20 mA / 0-10 V), and up to 2 potential-free switching contacts. Features an LCD display with backlighting and color change (green/yellow/red) for instant status visualization, plus intuitive on-device or software programming. Aluminum or stainless steel housing with IP65/IP67 protection, ideal for demanding industrial environments. As distributor at Garmasl, we emphasize its precision, multifunctionality, and seamless integration into control systems, positioning it as one of the best solutions in the market for differential pressure monitoring and transmission with local indication.

Main Specifications: Differential Pressure Indicator Transmitter Fischer DE38

• Measuring range: 0…60 mbar to 0…25 bar (uni-/bidirectional per model)
• Analog output: 4-20 mA (2-wire) or 0-10 V (3-wire), configurable
• Contacts: Up to 2 potential-free relays (adjustable, max. 250 VAC / 5 A)
• Display: Backlit LCD with color change (green/yellow/red) for visual alarm
• Process connection: Flange or G1/4, G1/2, 1/4 NPT (multiple options)
• Temperature: Medium -25…+80 °C; ambient -20…+70 °C
• Protection: IP65/IP67 depending on housing and mounting (aluminum or stainless steel)

Applications and Benefits: Differential Pressure Indicator Transmitter Fischer DE38

Monitoring in HVAC and Filtration Systems: The DE38 measures and transmits differential pressure in filters, fans, and air ducts, enabling predictive maintenance and energy optimization with clear local indication and analog output for PLC/SCADA, as one of the most comprehensive market solutions for environmental control.

Benefits in Industrial and Chemical Processes: Provides precise differential pressure control in process lines, tanks, or pumps, with contacts for automatic alarms or interlocks and a display showing instant status (normal/warning/critical) without additional equipment.

Advantages in Clean Rooms and Pharmaceuticals: Meets local visualization and reliable transmission needs in regulated environments, with rugged housing and visual alarm functions that enhance safety and compliance in sensitive applications.

Competitive Potential: Multifunctional (measurement + indication + transmission + relays), intuitive programming, and wide range coverage, the DE38 excels in HVAC, chemical industry, water treatment, and automation sectors, drawing inquiries for its German robustness, versatility, and outstanding value in differential pressure transmitters with integrated display.
