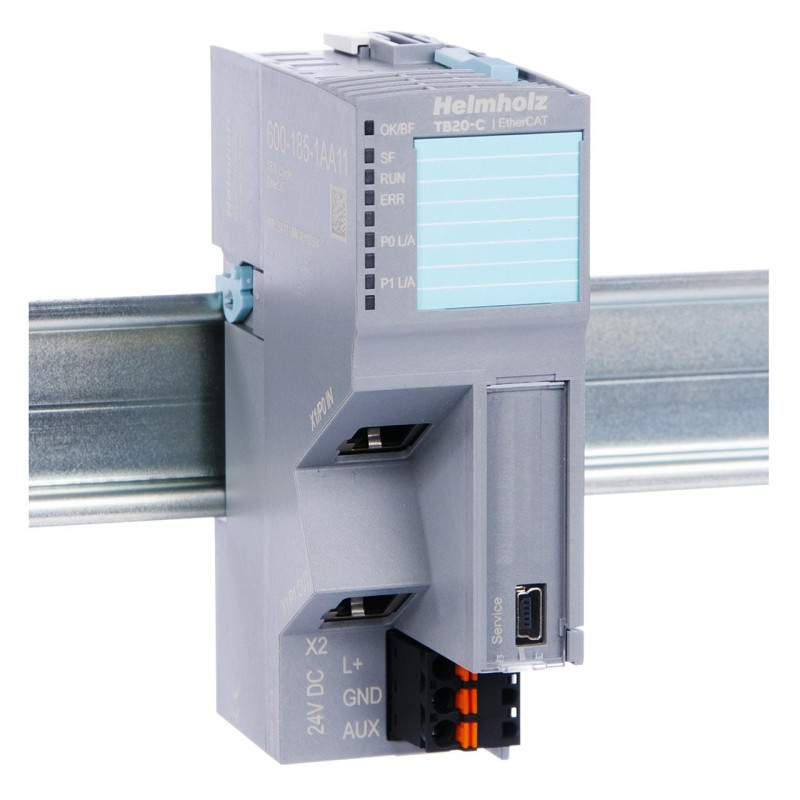

Helmholz TB20 EtherCAT Bus Coupler 600-185-1AA11 | Remote I/O
600-185-1AA11
The Helmholz TB20 600-185-1AA11 is an EtherCAT bus coupler for distributed I/O systems, designed to connect TB20 peripheral modules to an EtherCAT controller.
It features 2 EtherCAT RJ45 ports operating at 100 Mbps, supports up to 64 TB20 I/O modules and provides automatic process data mapping, CANopen over EtherCAT (CoE) support, and module and channel diagnostics.
Its modular design, support for replacing peripheral modules during operation, and configuration via TB20 ToolBox facilitate the installation and maintenance of remote I/O systems in industrial machinery and automation applications.
Part number: 600-185-1AA11 | Power supply: 24 V DC | Manufacturer: Helmholz.
.svg)
Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)
Helmholz TB20 600-185-1AA11 EtherCAT Bus Coupler
HELMHOLZ TB20 | ETHERCAT DISTRIBUTED I/O
Integrate remote input and output modules into EtherCAT networks for industrial machinery and process automation.
The Helmholz TB20 600-185-1AA11 is an EtherCAT bus coupler designed to connect peripheral modules from the TB20 distributed I/O system to an EtherCAT controller.
The coupler detects the installed TB20 modules and automatically maps their input and output data to the EtherCAT process data. It supports up to 64 peripheral modules connected in series and provides a process image of up to 1,024 bytes of input data and 1,024 bytes of output data.
Module configuration and parameterisation can be performed using TB20 ToolBox or through the CANopen over EtherCAT (CoE) object dictionary. The device supports the Modular Device Profile (MDP) and provides diagnostic functions to simplify commissioning and maintenance.
Key Features
EtherCAT connectivity
Two 100BASE-TX RJ45 ports operating at 100 Mbps, full duplex.
Up to 64 TB20 modules
Modular expansion using digital, analogue and other available TB20 peripheral modules.
Automatic data mapping
Peripheral module detection and assignment of I/O data to the EtherCAT process image.
Flexible maintenance
Peripheral module replacement during operation, with module and channel diagnostics.
Main Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Helmholz |
| Part number | 600-185-1AA11 |
| Product family | TB20 distributed I/O system |
| Function | EtherCAT bus coupler for TB20 peripheral modules |
| Protocol | EtherCAT according to IEC 61158 |
| EtherCAT interface | 2 × RJ45, 100BASE-TX, 100 Mbps full duplex |
| Peripheral modules | Up to 64 TB20 modules connected in series |
| Process image | Up to 1,024 bytes of input data and 1,024 bytes of output data |
| EtherCAT functions | CoE, MDP, SDO Info, Complete Access and automatic process data mapping |
| Configuration | TB20 ToolBox or CoE object dictionary |
| Service interface | Mini-USB, USB 1.1 Full Speed |
| Power supply | 24 V DC nominal; 18–28 V DC operating range |
| Operating temperature | 0 to +60 °C |
| Protection rating | IP20 |
| Dimensions | 73 × 35 × 110 mm (depth × width × height) |
| Marking and approvals | CE; check the current UL approval status for the supplied version |
Technical data refers to part number 600-185-1AA11. Module compatibility, power requirements and installation conditions must be checked for the complete TB20 station.
Applications and Benefits
EtherCAT Remote I/O for Machine Builders
The TB20 EtherCAT bus coupler enables machine builders to distribute input and output signals and connect them to an EtherCAT controller. Its modular architecture allows the number and type of I/O channels to be adapted to the requirements of each machine.
I/O Expansion in Production Lines
Support for up to 64 peripheral modules makes it possible to configure I/O stations with different digital and analogue signals, depending on the selected TB20 modules and the electrical limits of the system.
Commissioning and Diagnostics
TB20 ToolBox can be used to configure modules and their parameters, perform diagnostic checks and test I/O functions. Configuration is also possible through the CoE object dictionary.
Modular System Maintenance
TB20 peripheral modules can be replaced during operation in accordance with the manufacturer's instructions. This helps simplify certain maintenance tasks without dismantling the entire I/O station.
What Is Required to Build a TB20 EtherCAT I/O Station?
The 600-185-1AA11 bus coupler provides the communication interface for the station. A functional TB20 system also requires at least one compatible TB20 peripheral module.
ETHERCAT CONTROLLER
↓
TB20 BUS COUPLER 600-185-1AA11
↓
TB20 PERIPHERAL MODULES
Input and output modules selected for the application
↓
SENSORS AND ACTUATORS
Important: the bus coupler does not itself provide the I/O channels required by the application. Peripheral modules must be selected separately and must be compatible with the TB20 system. I/O modules from other manufacturers cannot be connected as if they were TB20 station modules.
Why Buy from Garma Electrónica?
Garma Electrónica supplies Helmholz solutions for industrial automation, communication networks and distributed I/O systems.
Our technical team can help you configure a complete TB20 EtherCAT station by selecting the appropriate bus coupler, input and output modules, accessories and configuration documentation for your application.
Need to Configure an EtherCAT I/O Station?
Tell us which EtherCAT controller you use, the number and type of I/O signals required, your power supply requirements and the number of stations planned.
