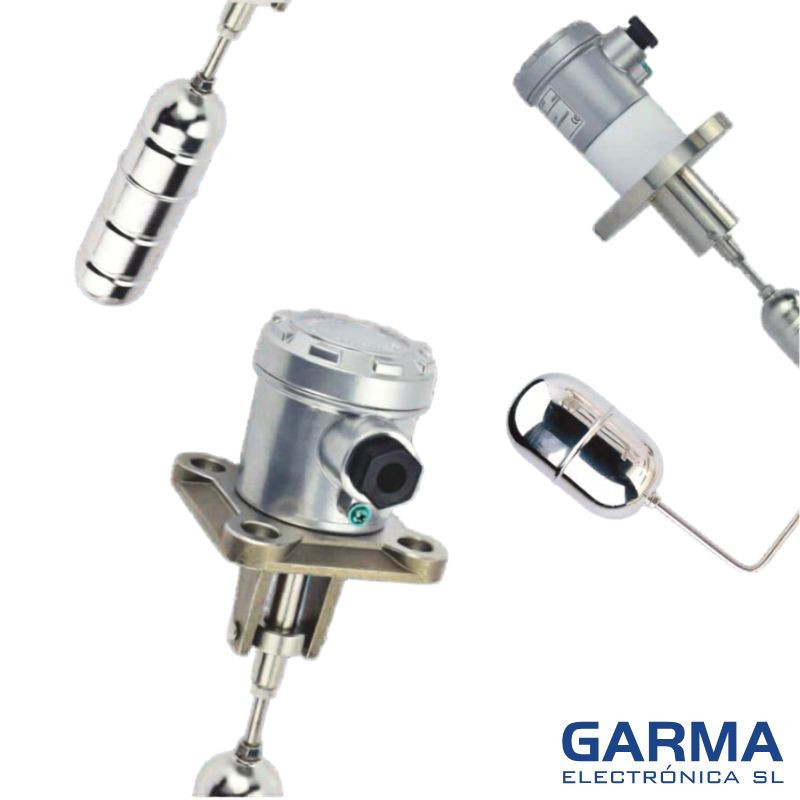

FineTek FFX Side Mounting Magnetic Float Level Switch
The FineTek FFX is a side mounting magnetic float level switch designed for reliable high, low or intermediate liquid level detection in industrial tanks, vessels and process equipment.
Its operating principle is based on buoyancy and magnetism: as the liquid level changes, the float moves and actuates a reed switch or microswitch, providing a simple and robust switching signal for industrial automation systems.
Key features: FineTek FFX Side Mounting Magnetic Float Level Switch
Horizontal side mounting for tanks and vessels.
High, low or intermediate level detection in liquids.
Available with reed switch or SPDT microswitch output.
Wetted materials available in stainless steel, polypropylene and corrosion-resistant versions.
Suitable for liquids with specific gravity from 0.25 S.G., depending on configuration.
High temperature, marine and explosionproof versions available.
Wide range of threaded and flanged process connections: JIS, DIN and ANSI configurations.
Industrial applications: FineTek FFX Side Mounting Magnetic Float Level Switch
- Level control in process tanks.
- Water and wastewater treatment systems.
- Chemical and process industries.
- Marine and shipbuilding applications.
- Level detection in corrosive liquids, depending on selected material.
- Overflow protection and dry-run prevention.
- Certifications: CE, IP68, ISO 9001, RoHS, ABS, DNV-GL, LR, BV, GL, RINA, NK, KR, CCS, UL, ATEX, IECEx, NEPSI, TS
Benefits for plant integration: FineTek FFX Side Mounting Magnetic Float Level Switch
The FineTek FFX side mounting float level switch provides a reliable on/off control signal for electrical panels, PLCs, control relays and supervision systems. It is a suitable solution when a robust mechanical level detection device is required without complex adjustment or advanced electronics.
Garma Electrónica, FineTek distributor in Spain
At Garma Electrónica, we help you select the right FineTek FFX version according to liquid type, density, temperature, process connection, wetted material, required certification and real installation conditions.
