EFX By-Pass Level Indicator | FineTek

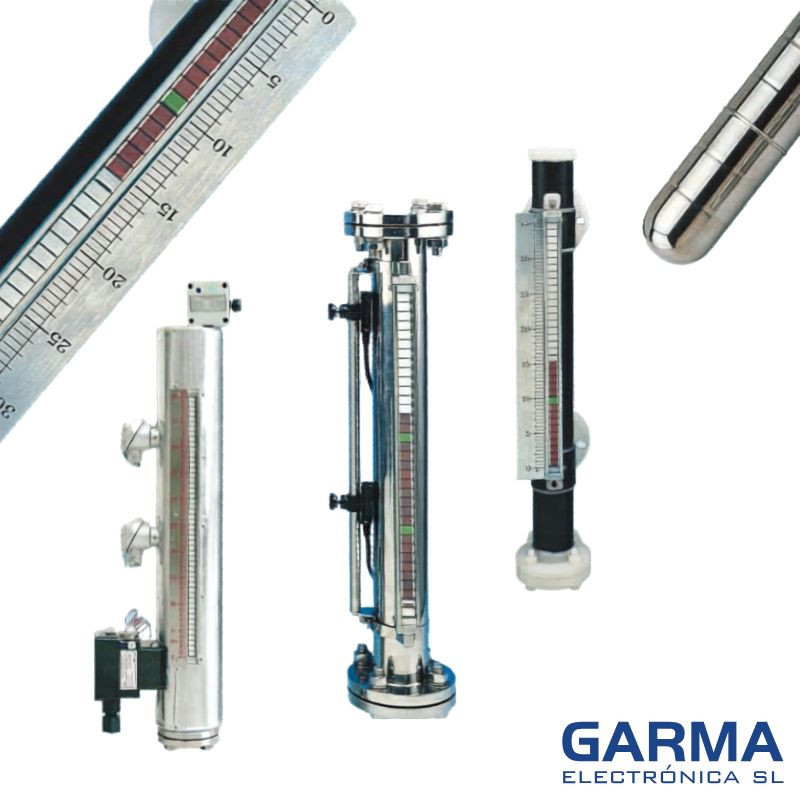

The FineTek EFX is a magnetic by-pass level indicator designed for local visual liquid level indication in industrial tanks, vessels and storage systems.
The system uses an external chamber connected to the tank. Inside the chamber, a magnetic float rises and falls with the liquid level, activating magnetic flags to provide a clear and safe visual indication.
The EF/MEF series can be used for local visual indication only or equipped with magnetic switches and level transmitters for electrical signal output and continuous level monitoring.
Key features: EFX By-Pass Level Indicator | FineTek
Local visual liquid level indication using magnetic flags.
Magnetic by-pass technology based on an internal magnetic float.
Safer alternative to traditional glass level gauges.
Available in standard EF and mini MEF versions.
Optional magnetic switches for alarm and control signals.
Optional level transmitter for continuous level output.
Side mounting on tanks and vessels using upper and lower process connections.
Suitable for demanding industrial applications, including high-temperature processes.
Technical specifications: EFX By-Pass Level Indicator | FineTek
| Specification | Detail |
|---|---|
| Technology | Magnetic by-pass level indicator |
| Operating principle | Magnetic float and magnetic flag indication |
| Versions | Standard EF / Mini MEF |
| Maximum measuring range | Up to 19 ft / 5.8 m |
| Maximum operating temperature | Up to 752 ºF / 400 ºC |
| Typical EF chamber diameter | 2.36" / 60 mm |
| Typical MEF chamber diameter | 1.18" / 30 mm |
| Options | Magnetic switches and level transmitter |
| Certifications |
ABS, DNV, BV, LR, CRN, CE, ATEX, IECEx, SIL, ISO 9001 |
Industrial applications: EFX By-Pass Level Indicator | FineTek
The EFX by-pass level indicator is designed for applications requiring safe and reliable local visual liquid level indication.
- Replacement of glass gauges with safer magnetic level indicators.
- Local visual level indication in tanks and vessels.
- Level control using optional magnetic switches.
- Continuous level transmission using optional transmitters.
- Petrochemical applications.
- Power plants.
- Wastewater treatment systems.
- Boiler areas and industrial process installations.
Advantages of the EFX magnetic by-pass level indicator
The FineTek EFX allows liquid level visualization without direct visual contact with the process fluid, improving operational safety compared to conventional glass level gauges.
Its modular design allows magnetic switches or level transmitters to be added without stopping the process, making future system upgrades easier according to plant control requirements.
