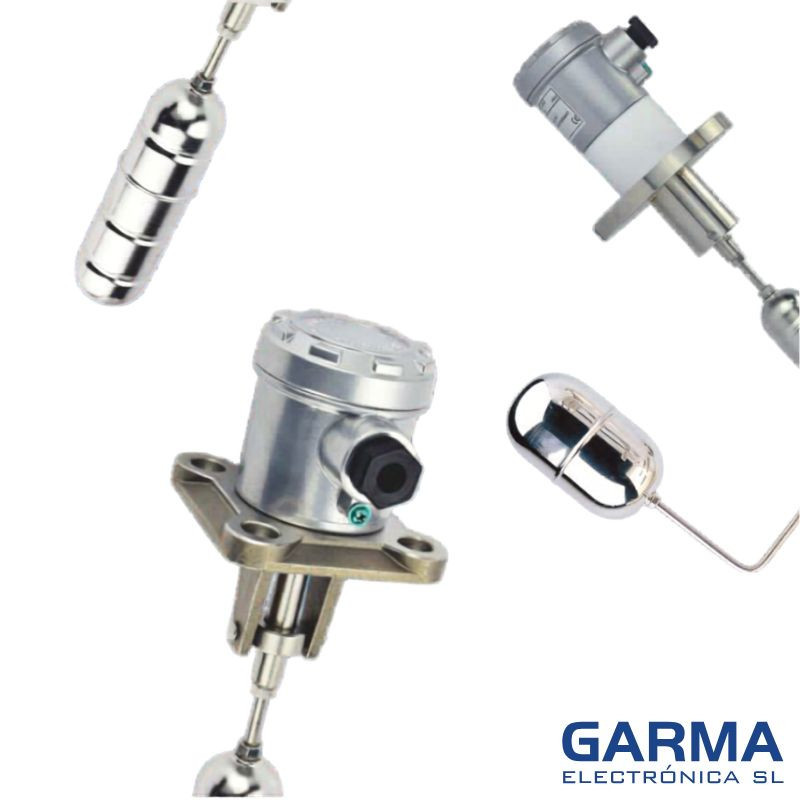

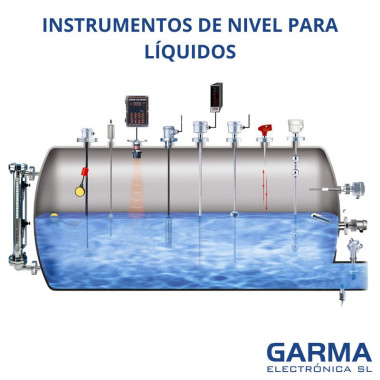

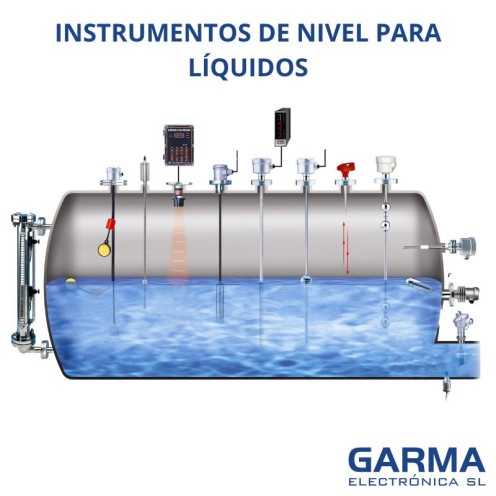

New-Flow LT206H Marine Side-Mounted Magnetic Level Switch with Flange
LT206
The New-Flow LT206H is a side-mounted magnetic float level switch with a flanged process connection, designed for point level detection in liquid tanks and vessels used in marine and industrial applications.
Its magnetic float mechanism operates an SPDT changeover microswitch to provide a discrete level signal. The device features a manual test mechanism.
Applications: high- and low-level detection, tank level alarms, shipboard auxiliary systems and industrial process automation, subject to fluid compatibility and installation requirements.
Garma Electrónica – Your New-Flow contact in Spain: technical advice, product selection, supply and assistance with documentation for marine and industrial instrumentation projects.
.svg)
Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)
New-Flow LT206H Side-Mounted Magnetic Level Switch for Marine Applications
NEW-FLOW LT206H | MARINE & INDUSTRIAL LEVEL CONTROL
Flanged side-mounted magnetic float level switch for point level detection in liquid tanks, vessels and shipboard auxiliary systems.
The New-Flow LT206H is a horizontal, side-mounted magnetic float level switch designed to detect a predefined liquid level in tanks and vessels. It features a flanged process connection and a magnetic mechanism that operates an electrical microswitch.
As the liquid level rises or falls, the float changes position and actuates an SPDT changeover contact through the magnetic mechanism. This provides a discrete signal that can be integrated into compatible alarm, monitoring and industrial control systems.
The LT206H includes a manual test device and is available with different flange sizes, pressure ratings and materials. The appropriate configuration must be selected according to the fluid, operating conditions and mechanical requirements of the installation.
Key Features
Side-mounted design
Horizontal installation through a flanged connection on the tank wall.
Magnetic float mechanism
Point level detection through magnetic actuation of a microswitch.
SPDT changeover contact
Common, normally open and normally closed terminals for electrical integration.
Manual test device
Built-in mechanism for checking the switching operation.
Main Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | New-Flow |
| Model | LT206H |
| Operating principle | Magnetic float mechanism operating a microswitch |
| Measurement function | Point level detection for liquids |
| Installation | Horizontal / side-mounted |
| Process connection | 2½", 3" or 4" flange, depending on part number |
| Flange rating | JIS 10K, ANSI 150 or PN10; other options on request |
| Flange material | Stainless steel 316, stainless steel 304, carbon steel or other options on request |
| Enclosure material | ADC12 aluminium |
| Enclosure protection | IP65 |
| Switch type | SPDT microswitch, changeover contact |
| Contact rating | 15 A at 125/250 V AC or 480 V AC, subject to the manufacturer's specified conditions |
| Temperature limits | -25 to +100 °C |
| Pressure limit | 0.3 MPa (3 bar) |
| Electrical conduit connection | 3/4" female NPT; for Ø10 mm cable |
| Liquid specific gravity | ≥ 0.7; lower specific gravity option available on request |
| Manual test device | Included |
Flange size, pressure rating and materials depend on the selected ordering code. Verify the chemical compatibility of wetted parts, operating conditions and installation dimensions before selecting the final configuration.
Marine Applications and Benefits
Shipboard Tanks and Vessels
The LT206H can be used for point level detection in liquid tanks and vessels installed on board ships, subject to the fluid characteristics, installation conditions and project requirements.
High- and Low-Level Alarms
The SPDT changeover contact can be integrated into monitoring systems to generate an alarm when the liquid reaches or falls below a predefined level. The alarm logic must be configured according to the installation requirements.
Shipbuilding and Marine Maintenance
The flanged side-mounted design makes the LT206H a candidate for new installations and replacement projects requiring point level detection. The flange configuration, wetted materials and available clearance for float movement must be checked before installation.
Industrial Tank Level Monitoring
In addition to marine applications, the LT206H can be integrated into industrial tank monitoring and filling or emptying control systems using suitable electrical control and protection devices.
How Does the LT206H Magnetic Level Switch Work?
The LT206H uses a float positioned inside the tank. As the liquid level changes, the float moves and actuates the microswitch through a magnetic mechanism located within the device.
LIQUID LEVEL CHANGES
↓
FLOAT MOVEMENT
↓
MAGNETIC ACTUATION
↓
SPDT CONTACT SWITCHING
↓
LEVEL SIGNAL TO THE CONTROL SYSTEM
The LT206H provides a discrete point level signal rather than continuous level or volume measurement. Applications requiring several detection points must be designed with the appropriate number of switches and control logic.
Marine Type Approval Documentation
New-Flow provides marine type approval documentation covering specified level switch products. Documentation relating to the LT206H/LT206V family includes references to ABS (American Bureau of Shipping) and Bureau Veritas.
For shipbuilding and marine projects subject to classification requirements, Garma Electrónica can assist with identifying the appropriate LT206H configuration and checking the applicable approval documentation.
Technical and approval documentation on request
Product datasheet, dimensional drawings, flange configuration, material specifications and applicable marine type approval documentation for the selected part number.
Important: acceptance of the device for a specific vessel or marine project depends on the validity and scope of the applicable certificates, the supplied configuration and the installation requirements established by the classification society and the project.
How to Select the Correct New-Flow LT206H Configuration
To identify the appropriate ordering code, the following application requirements should be confirmed:
- Horizontal, side-mounted LT206H installation.
- Process connection: 2½", 3" or 4" flange.
- Flange rating: JIS 10K, ANSI 150, PN10 or another available option.
- Flange and wetted-part materials compatible with the process fluid.
- Liquid specific gravity, operating pressure and temperature.
- Available internal clearance for float movement.
- High-level or low-level switching function and electrical integration requirements.
- Applicable marine classification and project documentation requirements, where relevant.
New-Flow Spain | Technical and Commercial Contact: Garma Electrónica
Garma Electrónica is your contact in Spain for technical and commercial enquiries about New-Flow instrumentation, including magnetic level switches for liquid tanks, industrial installations and marine applications.
Based in San Sebastián (Donostia), Spain, we provide assistance with product selection, process requirements, equipment supply and technical documentation for engineering companies, shipyards, machine builders and industrial maintenance teams.
Our team can help you identify the appropriate LT206H part number according to the liquid, specific gravity, operating pressure and temperature, flange dimensions and rating, material requirements and applicable marine project specifications.
Request a Quote for New-Flow LT206H
Contact Garma Electrónica for assistance with selecting the appropriate side-mounted level switch and checking the technical and marine documentation required for your application.
Garma Electrónica | Your New-Flow Contact in Spain | Marine and Industrial Instrumentation.
