FineTek SDX Optical Level Switch for point liquid detection | Finetek

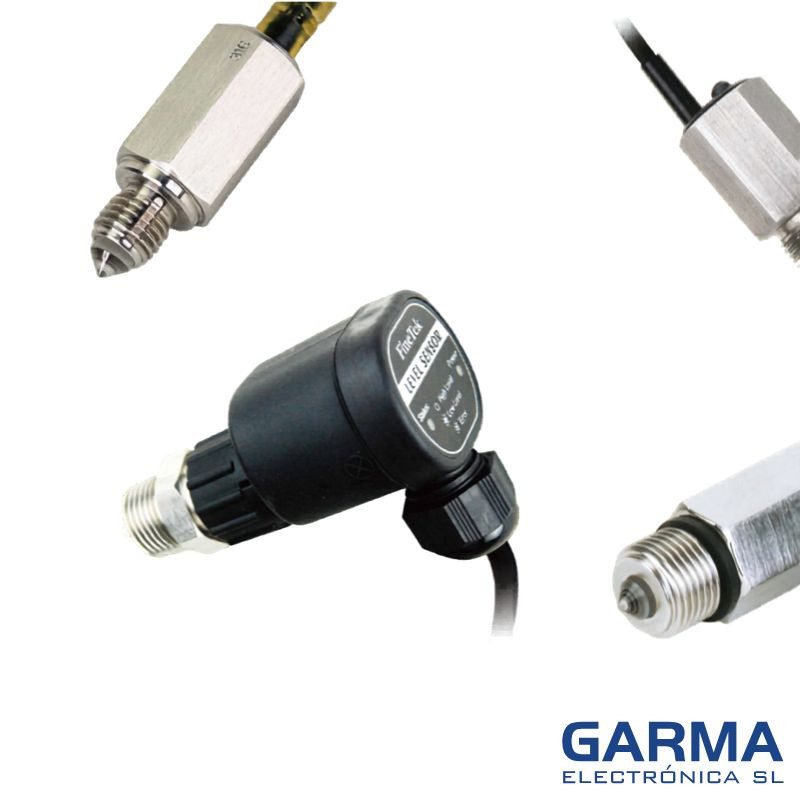

The FineTek SDX Optical Level Switch is an optical liquid level switch designed to detect the presence or absence of liquid in tanks, pipes, machines and industrial process equipment. Its operation is based on total light reflection in a prism: when the sensor tip is surrounded by air, the light is reflected back to the receiver; when liquid covers the prism, the light is refracted and the output switches.
With its compact design, no moving parts and built-in electronics, the SDX is a reliable solution for point level detection where fast response, low maintenance and easy integration are required.
Key features of the FineTek SDX Optical Level Switch: SDX Optical Level Switch for point liquid detection | Finetek
Optical prism detection for liquid presence or absence.
Compact and robust design for machine integration.
No moving parts, reducing wear and maintenance.
LED indication for local switch status monitoring.
Power supply versions: 10–28 VDC, 115 VAC or 230 VAC.
Available outputs: NPN/PNP or relay, depending on model.
Cable or M12 connector versions.
Process thread options: PT, PF or NPT.
Materials available in SUS304 / SUS316 with glass tip depending on version.
Industrial applications: SDX Optical Level Switch for point liquid detection | Finetek
The SDX optical level switch is suitable for industrial automation applications requiring minimum level, maximum level or liquid presence detection at a specific point in the process.
- Liquid tanks and auxiliary vessels.
- Hydraulic reservoirs.
- Industrial compressors.
- Air conditioning and refrigeration systems.
- Machine tools.
- Processing and packaging equipment.
- Food and beverage systems.
- Pharmaceutical systems.
- Sumps and collection tanks.
Technical advantages for automation projects: SDX Optical Level Switch for point liquid detection | Finetek
- Reliable point detection for compatible liquid applications.
- Easy installation in tanks, pipes and compact process equipment.
- Low maintenance with no float or mechanical moving parts.
- Compact format for OEM machinery and retrofit projects.
- Direct integration with PLCs, relays, digital inputs and alarm systems.
Main specifications: SDX Optical Level Switch for point liquid detection | Finetek
| Product | FineTek SDX Optical Level Switch |
| Measuring principle | Optical prism reflection/refraction |
| Application | Point level detection in liquids |
| Power supply | 10–28 VDC / 115 VAC / 230 VAC depending on version |
| Output | NPN, PNP or relay depending on model |
| Body material | SUS304 / SUS316 depending on configuration |
| Indication | Status LED |
| Protection rating | Up to IP67 depending on version |
| Process connection | 3/8", 1/2", PT, PF, NPT or M20 depending on version |
| Certificaions | CE, IP68, ISO 9001, RoHS, FDA, UL / cUL |
Garma Electrónica: FineTek distributor and technical support
At Garma Electrónica, we help select the right FineTek SDX optical level switch according to the liquid, temperature, pressure, mechanical connection, electrical output and control logic required. Our approach combines product supply, technical advice and integration support for industrial applications.
Contact us to check material compatibility, process connection, power supply, output type and real installation conditions.
