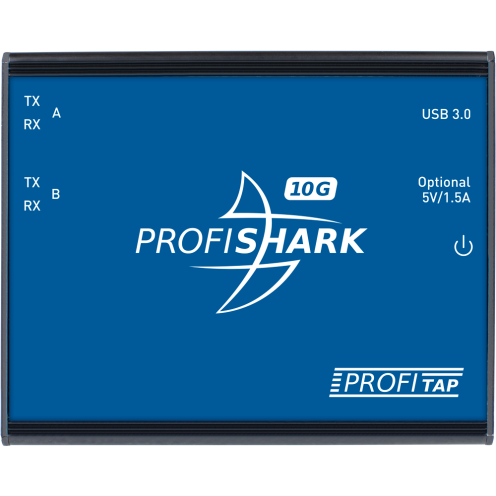

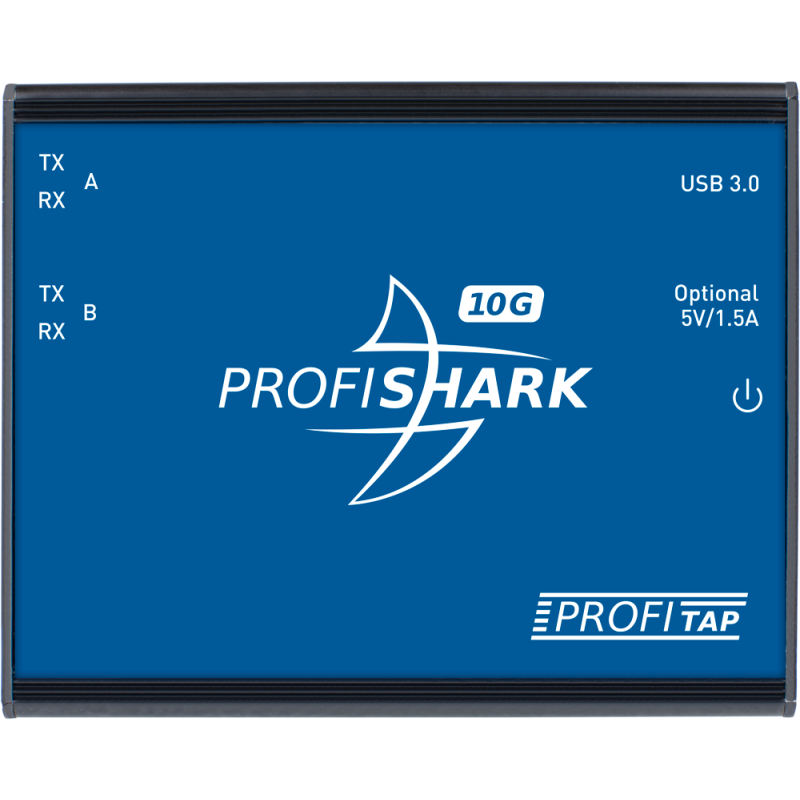

ProfiShark 10G – Portable Ethernet TAP

ProfiShark 10G by Profitap captures packets on 1 and 10 Gbps Ethernet links, using compatible copper or fiber SFP/SFP+ transceivers.

Hardware filtering selects relevant packets before they are sent to the computer.

Key Features

• 5 ns hardware timestamping resolution: records packet arrival times for interval, latency and jitter analysis. Resolution is different from synchronization accuracy between devices.
• Frame capture: preserves tags, encapsulation and CRC/FCS error frames for analysis beyond conventional network interface capture.
• Transparent access: ProfiShark and the capture computer do not appear as nodes on the monitored network.
• ProfiShark Manager and Wireshark: configuration, statistics and direct-to-disk capture, with packet analysis in Wireshark or other tools.
• Hardware filtering: selects packet types, MAC addresses, IP addresses, ports and patterns; packet slicing limits the bytes stored.
• Copper and fiber: choose transceivers for the link speed, medium and distance.

Main Specifications

Capture and link continuity conditions

A 10 Gbps link is not the same as PC capture throughput. USB 3.0 output supports approximately 3.2 Gbps of captured traffic; use filters and packet slicing to prevent oversubscription. SFP/SFP+ cages require power: power-loss link continuity needs an external fiber TAP in the configuration specified by Profitap.

Applications and Benefits

• Maintenance and commissioning: capture exchanges between PLCs, HMIs, switches and other devices to investigate communication failures and intermittent behavior.
• Technical support: share capture files with manufacturers and integrators, and retain normal-operation traces as a baseline.
• Extended capture: use storage and a compatible NAS to record sporadic faults; verify capacity, platform and drivers.
• Target sectors: machinery OEMs, food processing, automotive, water and energy; choose the capture point for the IT/OT architecture.

How is it installed?

Prepare the computer with ProfiShark Manager and the required drivers; no software is installed on monitored PLCs, HMIs or other devices. In-line insertion requires work on the link and a planned connection. An existing mirror port or TAP can provide another access point, depending on the model.

Is this the right model for my network?

Choose 10G for 1/10 Gbps links; for synchronized multi-point capture, consider 10G+.

Compare all ProfiShark models

Manufacturer technical information

Ask Garma Electrónica for technical advice
Tell us the speed, copper or fiber medium, capture point, traffic load and recording duration. We help select the TAP and, where needed, transceivers, a fiber TAP or compatible storage.

Request a quote and advice on ProfiShark 10G
