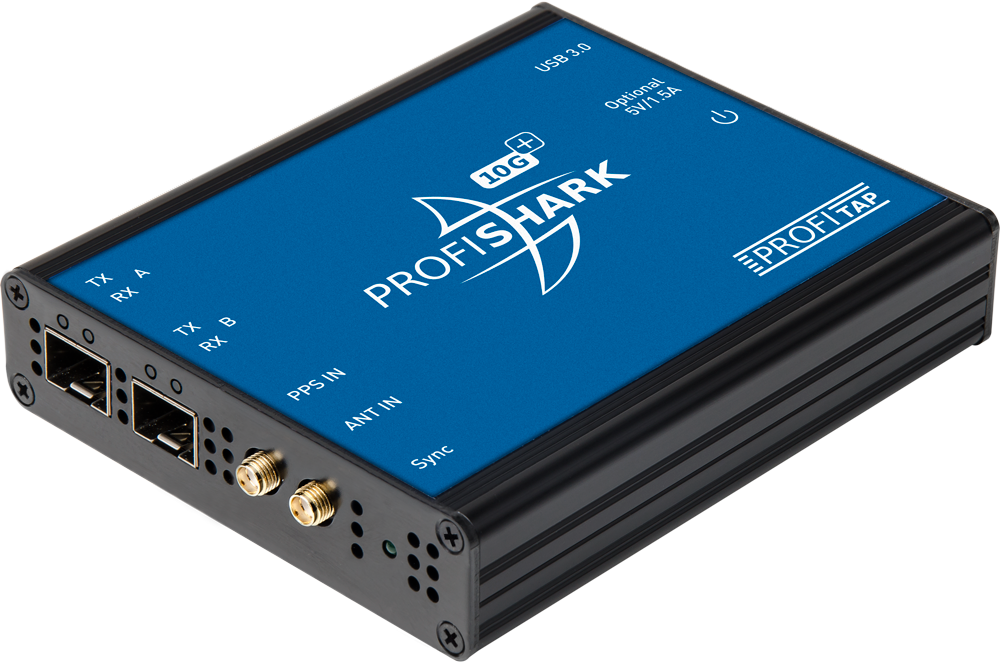

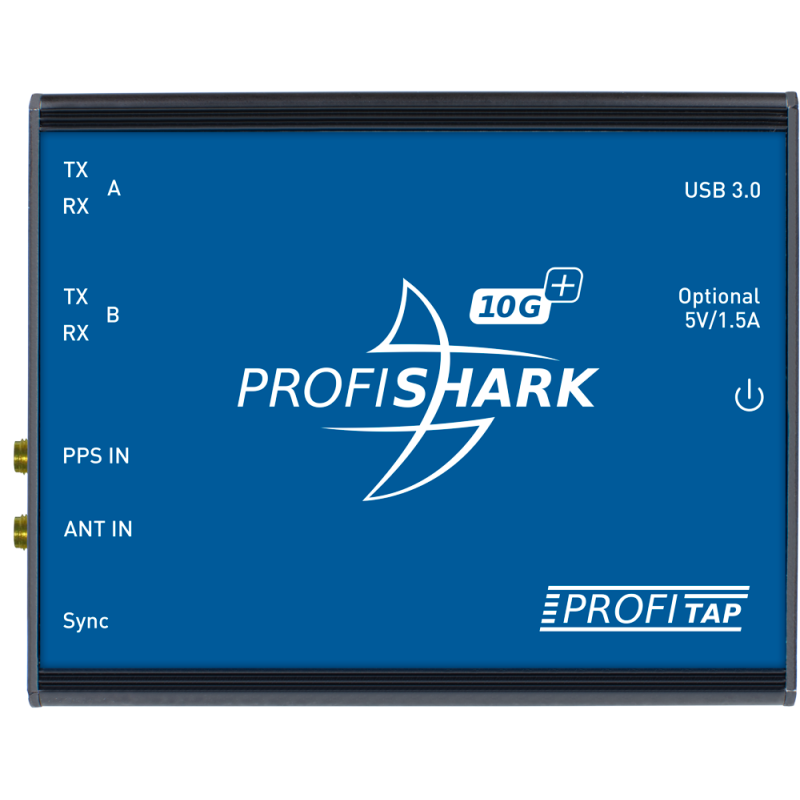

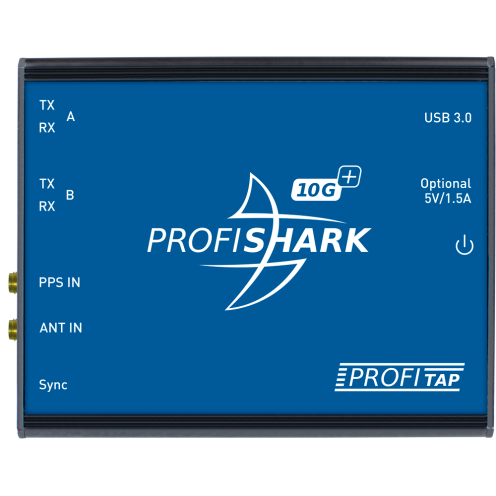

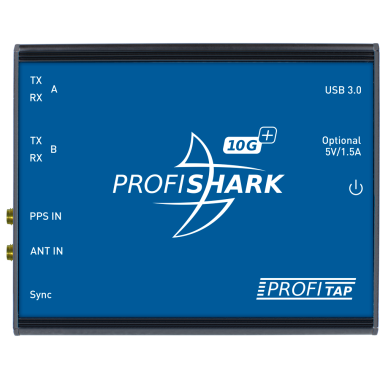

ProfiShark 10G+ – Portable Ethernet TAP GPS/PPS
C1AP-10G2
ProfiShark 10G+: captures packets on 1 and 10 Gbps Ethernet links, using compatible copper or fiber SFP/SFP+ transceivers. GPS/GLONASS and PPS synchronization lets you correlate captures from multiple locations using a common time reference. USB capture and Wireshark analysis. Technical advice from Garma.
.svg)
Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)
ProfiShark 10G+ by Profitap captures packets on 1 and 10 Gbps Ethernet links, using compatible copper or fiber SFP/SFP+ transceivers.
GPS/GLONASS and PPS synchronization lets you correlate captures from multiple locations using a common time reference.
Key Features
- 5 ns hardware timestamping resolution: records packet arrival times for interval, latency and jitter analysis. Resolution is different from synchronization accuracy between devices.
- Frame capture: preserves tags, encapsulation and CRC/FCS error frames for analysis beyond conventional network interface capture.
- Transparent access: ProfiShark and the capture computer do not appear as nodes on the monitored network.
- ProfiShark Manager and Wireshark: configuration, statistics and direct-to-disk capture, with packet analysis in Wireshark or other tools.
- Hardware filtering: selects packet types, MAC addresses, IP addresses, ports and patterns; packet slicing limits the bytes stored.
- GPS/GLONASS and PPS: UTC timestamping and PPS input/output synchronization for correlating traces from multiple locations.
Main Specifications
| Link speed | 1/10 Gb/s |
|---|---|
| Network interfaces | 2 × SFP/SFP+ |
| Hardware timestamping | 5 ns resolution |
| Computer connection | USB 3.0 |
| Power | USB 3.0 / optional 5 VDC input |
| GPS/PPS | 1 × SMA GPS/GLONASS + 1 × SMA PPS |
| Advanced hardware filtering | Yes |
| PoE passthrough | Not specified for SFP/SFP+ models |
| Dimensions (W × D × H) | 105 × 124 × 26 mm |
| Capture computer | Dual-core CPU, 4 GB RAM and USB 3.0; size storage for the traffic load |
| Operating systems | Windows, Linux, macOS; check drivers for the installed version |
Capture and link continuity conditions
A 10 Gbps link is not the same as PC capture throughput. USB 3.0 output supports approximately 3.2 Gbps of captured traffic; use filters and packet slicing to prevent oversubscription. SFP/SFP+ cages require power: power-loss link continuity needs an external fiber TAP in the configuration specified by Profitap.
Applications and Benefits
- Maintenance and commissioning: capture exchanges between PLCs, HMIs, switches and other devices to investigate communication failures and intermittent behavior.
- Multi-point correlation: compare synchronized traces to examine the path and timing of communications between capture locations.
- Extended capture: use storage and a compatible NAS to record sporadic faults; verify capacity, platform and drivers.
- Target sectors: machinery OEMs, food processing, automotive, water and energy; choose the capture point for the IT/OT architecture.
How is it installed?
Prepare the computer with ProfiShark Manager and the required drivers; no software is installed on monitored PLCs, HMIs or other devices. In-line insertion requires work on the link and a planned connection. An existing mirror port or TAP can provide another access point, depending on the model.
Is this the right model for my network?
Choose this model when you need synchronization between captures. For single-point capture, also consider the model without GPS/PPS.
Manufacturer technical information
Ask Garma Electrónica for technical advice
Tell us the speed, copper or fiber medium, capture point, traffic load and recording duration. We help select the TAP and, where needed, transceivers, a fiber TAP or compatible storage.
